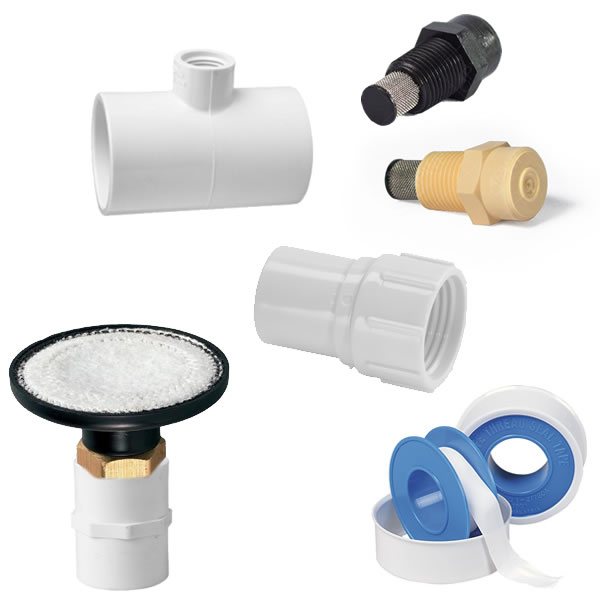

Poly Mist Nozzles
Available in 1, 2, and 3 GPH (gallons per hour) outputs. These precision molded nozzles are made with a very durable plastic that outwears brass and stainless steel nozzles and have excellent chemical resistance. Every mist nozzle has a built-in debris filter. 1 gph is best for evaporative cooling. 3 gph is best for misting in seeds and cutting. 2' spacing between nozzles is recommended. Nozzles fit a 1/8" pipe thread and are not compatible with our mist systems that have brass mist nozzles.
PVC Misting Tee
These Tees allow you to use the 1/8" misting nozzles with 1/2" PVC water pipe. Teflon tape is needed to seal nozzles into Tees. 1/2"S x 1/2"S x 1/8"T
Auto Drain Valve
This device automatically drains the water left in the pipe after the misting system is cut off. Draining the line helps prevents the misting nozzles from dripping and algae from forming in the pipe. Connector for attaching valve to 1/2" PVC pipe is included. Teflon tape below is needed to seal valve into connector.
Teflon Sealing Tape
This special tape is wrapped over the threads of the misting nozzles to provide a watertight seal when when screwing it into the Tee. Each roll will wrap over 100 nozzles. Highly recommended. 1/2" x 520"
Swivel Hose Connector
This fitting will connect 1/2" PVC pipe to a standard outdoor faucet or water hose. One end slides over 1/2" PVC pipe and the other has a 3/4" swivel garden hose connector with washer.
