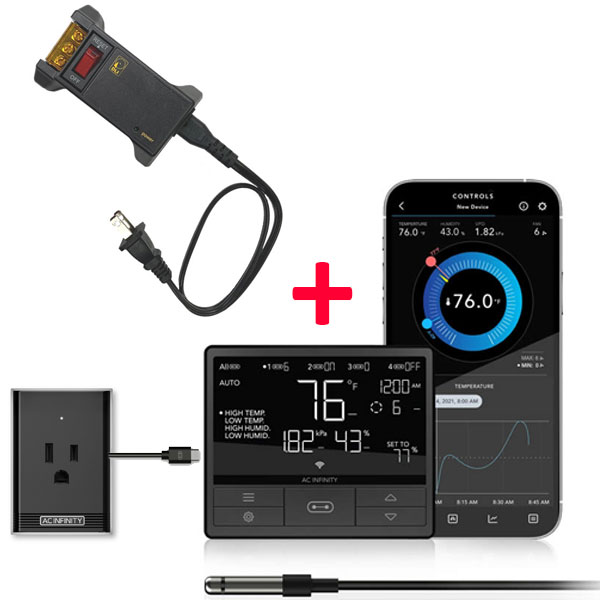

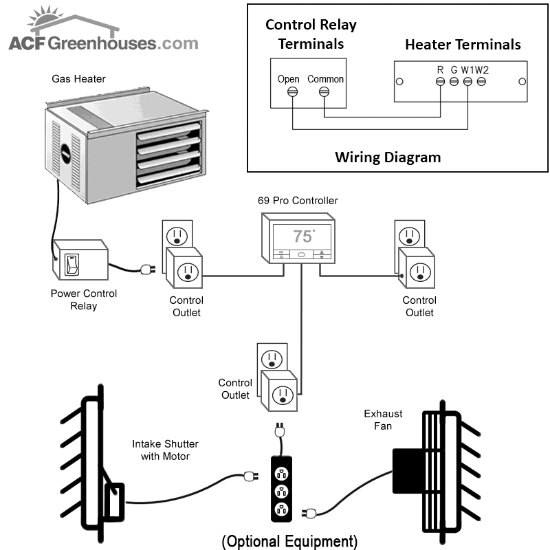

The AC Infinity 69 Pro controller connects with up to four different devices from fans and heaters to misting and lights and provides each with shared or independent temperature, humidity, or time-based programming. Simply add the number of AC Infinity control outlets you need for your system (4 max) when you order. Control outlets can be plugged into any standard 120v electrical receptacle (Even on different electrical circuits) up to 10' from the 69 Pro controller (Cord extensions are available for longer runs). The included Plug-in Power Control Relay allows you to easily connect a gas heater with low voltage thermostat contacts to the AC Infinity Control
What's Included
- AC Infinity 69 Pro Control
- AC Infinity Control Outlet (1 to 4 outlets)
- Plug-in Power Control Relay
Using 69 Pro Controller Automations
Setting up automations allows you to do things like control devices with separate day/night temperature and/or humidity set points. You can also have devices cut on/off based on a combination of temperature and humidity like having an exhaust fan come on if either the temperature or humidity are too high. You can also stage equipment. For example: You can set intake shutters to open at 70°F, have an exhaust fan come on if the temperature rises above 75°F, and then have a misting system come on if the temperature continues to rise past 80°F. You can also have these interactions only happen during certain hours of the day. There isn't much this controller can't do!
AC Infinity 69 Pro Control Features
- Humidity range: 0% to 100%
- Temperature range: 32°F to 194°F
- Can control outlets by temperature, humidity, or both at the same time
- Cycle timer range: 1 minute to 24 hours (ON & OFF cycles)
- Adjustable differential / buffer: 1° to 30°F temp., 1% to 10% humidity
- Connect to phone app via WIFI (2.4G) or Bluetooth for climate monitoring, setup, & data graphs.
- 10' temperature and humidity sensor with photocell
- Optional manual calibration
- Internal battery keeps settings during unexpected power failure
AC Infinity Control Outlet Features
These outlets allow the 69 Pro to control any item you plug into them.
- Can handle 15 full load amps @120V
- Includes 10' connector cord
- Up to 4 units can be connected to a single 69 Pro control
- Built-in indicator light displays on/off mode
AC Infinity 69 Pro Controller Online Setup Guide - Complete 69 Pro control manual.
AC Infinity Controller Auto Mode Setup Guide - Quick guide to setting up the AC Infinity controller in auto mode.
AC Infinity Control Outlet / Plug Instruction Manual
