Retail: $54.00
Price: $42.95
Availability: In Stock - Usually ships in 1 to 2 days.
SHUTTER SIZE:

Quantity:
Need help sizing intakes for an exhaust fan? Use our Intake Shutter Size Guide

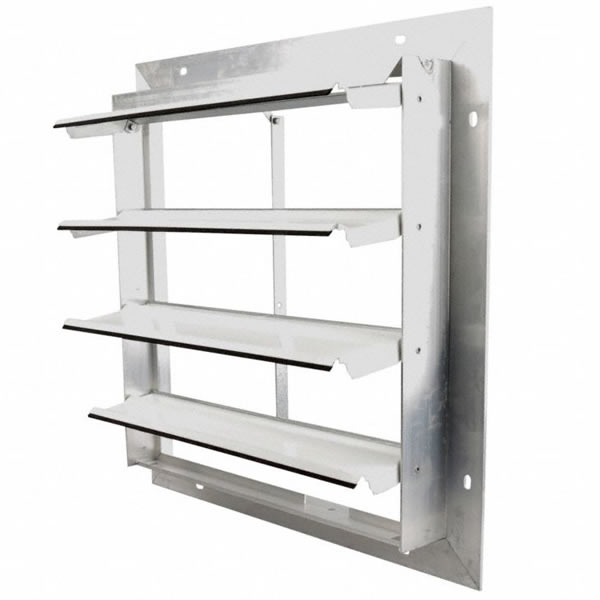

These aluminum shutters are commonly paired with exhaust fans to allow make up air into the structure to replace the air being exhaust. They can also be used for exhausting air when paired with and evaporative cooler or intake fan. The frame is mill finish aluminum. The blades have a white enamel finish and a galvanized reinforcement strip across the top of each blade for added strength and counter balancing efficiency. The blades have a felt seal on the leading edge for quiet closing and better protection from the weather. Recommended for vertical mount applications only.

Shutter Features:

  • Rustproof aluminum frame and louvers
  • Louvers have weather stripping to provide quiet operation and reduce heat loss

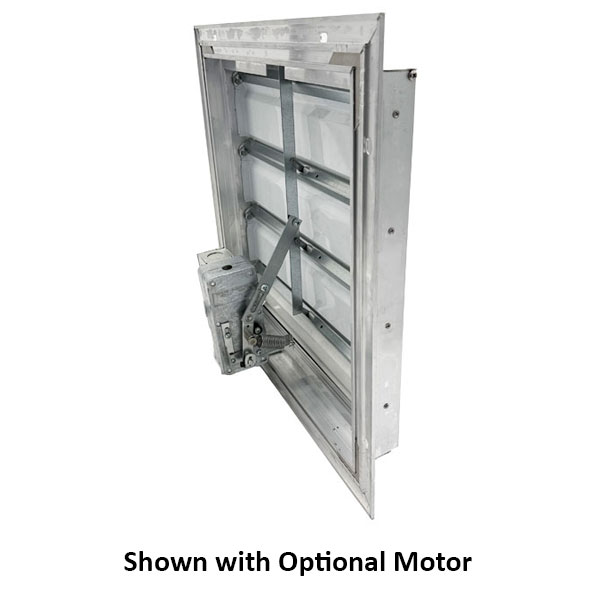

  • Shutters can be equipped with an optional shutter motor to automate them
  • Made in the USA


Intake / Exhaust Shutter Diagram


Aluminum Intake Shutter Specifications

Shutter Size
A
B
C
Rough Opening
12"
12 1/16"
15 1/8"
2 5/16"
12 1/4" sq.
16"
16 1/16"
19 1/8"
2 5/16"
16 1/4" sq.
20"
20 1/16"
23 1/8"
2 5/16"
20 1/4" sq.
24"
24 1/16"
27 1/8"
2 5/16"
24 1/4" sq.
30"
30 1/16"
33 1/8"
2 5/16"
30 1/4" sq.

Product Manuals, Tips, Specs, & Guides

Aluminum Shutter Instruction Manual - Includes dimensions, layout, and installation tips.
Shutter Size Guide - Not sure what size intake shutters to pair with your exhaust fan? Our guide has recommendations for you.


Item # 8015205, 8015210, 8015220, 8015230, 8015240

Product Manuals, Tips, Specs, & Guides

Aluminum Shutter Instruction Manual - Includes dimensions, layout, and installation tips.
Shutter Size Guide - Not sure what size intake shutters to pair with your exhaust fan? Our guide has recommendations for you.

Overall Customer Rating of 5 Reviews:

Excellent products and service

Rating:
I bought two exhaust/intake shutters, Belimo shutter motors, and SureStat TS110 controls. The shutters were a bit sticky to open due to the mfgr's cutting and bending at the leading edges/corners of the louvers where they overlap (shutters were slightly catching on each other) Dayton could give that a bit more attention, but it was easily fixed with a pair of pliers. The motors mounted easily, but again the alignment of the shutter's center connecting bar was off due to irregular forming and needed tweaking to operate smoothly. Once assembled and wired, everything worked as expected. Like magic, intake ventilation in my greenhouse is greatly improved. Now onto my exhaust challenges.

Rocky Mountain foothills

Nice shutter

Rating:
The shutter we bought has not been installed yet, but looks to be well made and operates smoothly. I like the weatherstripped bottom edges of each fin; it seems like it will help seal out the wind.

Kansas

Twelve-inch Shutter Installed As Air Intake

Rating:
A decently made product, now installed. Material is light weight enough that I hope the pull of a ten-inch exhaust fan on the opposite wall will allow the shutter to open.
Much more work to do on a 10' x 25' greenhouse until it can be tested.

Worked out great

Rating:
These are just what I need for exhausting the air from my cooler. The installation was straight forward with no issues. I wired them and the cooler to the same thermostat, and everything is working great. Thanks for helping me get the right size!

Baton Rouge, LA

Greenhouse fan system

Rating:
Just installed the system and so far— it seems to be exactly what we needed for this 12x16 greenhouse here in Louisiana.
We will follow up once everything is up and running.
