Multi Speed Exhaust Fans

ITEM #: 80104
review-star review-star review-star review-star review-star
Read 11 reviews
11 review(s)
| Write a review
Retail: $178.00
Price: $199 - $340
AVAILABILITY:
Availability: In Stock - Usually ships in 1 to 2 days.
FAN SIZE:
Need help sizing a fan for your greenhouse? Use our Exhaust Fan Size Calculator

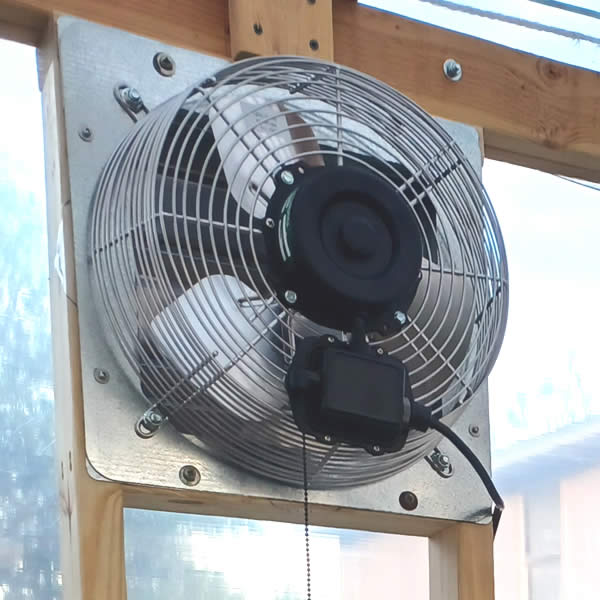

Our exhaust fans are a great option for cooling and providing fresh air inside a greenhouse, shop, or garage. They include a rustproof aluminum shutter frame with built-in interlocking louvers to reduce heat loss during cold months. These exhaust fans also come equipped with completely enclosed multi speed direct drive motors which can be set to multiple different speed with the attached pull chain. This allows you to reduce fan speed during cold months minimizing cold air shock to plants.

Multi Speed Louvered Exhaust Fan Features:

  • Totally enclosed outdoor rated UL507 certified motor
  • Rustproof aluminum shutter frame with built-in interlocking louvers to reduce heat loss
  • Multiple selectable speeds and on/off capability via attached pull chain
  • Prewired with a grounded 9' power cord (no wiring required)
  • Fans can be automated with any of our 110/120 volt greenhouse thermostats
  • Comes completely assembled
  • Made in the USA

Shutter Fan Diagram

Exhaust Fan Dimensions

Fan Size
A
B
C
D
E
F
G
H
Rough Opening
12"
15"
15"
12 1/8"
12 1/8"
6"
3"
1/8"
2"
12 1/4" sq.
16"
19"
19"
16 1/8"
16 1/8"
6"
3"
1/8"
2"
16 1/4" sq.
20"
23"
23"
20 1/8"
20 1/8"
6"
3"
1/8"
2"
20 1/4" sq.
24"
27"
27"
24 1/8"
24 1/8"
6"
3"
1/8"
2"
24 1/4" sq.

Exhaust Fan Specifications

Fan Size
Weight
*CFM Range
HP
Volts
Amps
12"
17 lbs.
1100 / 850 / 550
1/32
110/120
1.1
16"
23 lbs.
2950 / 2050 / 1200
1/10
110/120
1.5
20"
29 lbs.
4220 / 3250 / 2130
1/10
110/120
1.5
24"
37 lbs.
5850 / 3475
1/8
110/120
1.8
*CFM stands for Cubic Feet per Minute which is the air volume that the fan can exhaust in one minute.


Product Manuals, Tips, Specs, & Guides

Exhaust Fan Instruction Manual - Includes dimensions, layout, and installation tips.
Fan & Shutter Size Calculator - Not sure what size fan you need for your greenhouse? Just enter the measurements into our calculator to find out!


Item # 8010400, 8010405, 8010410, 8010415

Product Manuals, Tips, Specs, & Guides

Exhaust Fan Instruction Manual - Includes dimensions, layout, and installation tips.
Fan & Shutter Size Calculator - Not sure what size fan you need for your greenhouse? Just enter the measurements into our calculator to find out!
