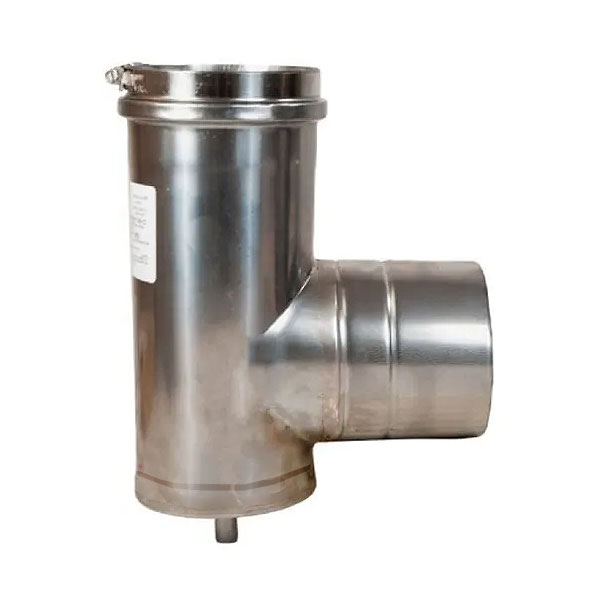

The vertical drain tee fitting is a 2-in-1 condensate drain and a 90-degree vertical elbow, used to drain condensate on vertical pipe runs. The condensate outlet is compatible with the 3/8" drain tubing kits we offer. The stainless steel heater vent pipe and fittings feature patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90° from mechanical locking bands. All pipe and fittings are UL1738 approved for category II, III and IV venting applications.
What is UL 1738? In short, it is a US standard for gas venting systems required in category 3 applications. Category 3 refers to positive vent pressure which is created by exhaust blowers in unit heaters. These vent systems must be constructed of 316L stainless steel, contain gaskets for sealing, and have a built in mechanical locking band among other requirements. All category 3 vent pipe and fittings offered are single wall.
Features
- Made of 316L corrosion resistant stainless steel
- Built-in high temp silcone gaskets for air tight seal
- Built-in locking band to insure a secure fit (no hardware needed)
- UL1738 approved for category 3 venting applications
- Limited lifetime warranty
Item # VT 4660170, 4660270, 4660370, VT4660170, VT4660270, VT4660370
