• Save 10% versus purchasing items separately
  • Our simplest to install fan system
Price: $289 - $545
AVAILABILITY:
Availability: In Stock - Usually ships in 1 to 2 days.
FAN SYSTEM:

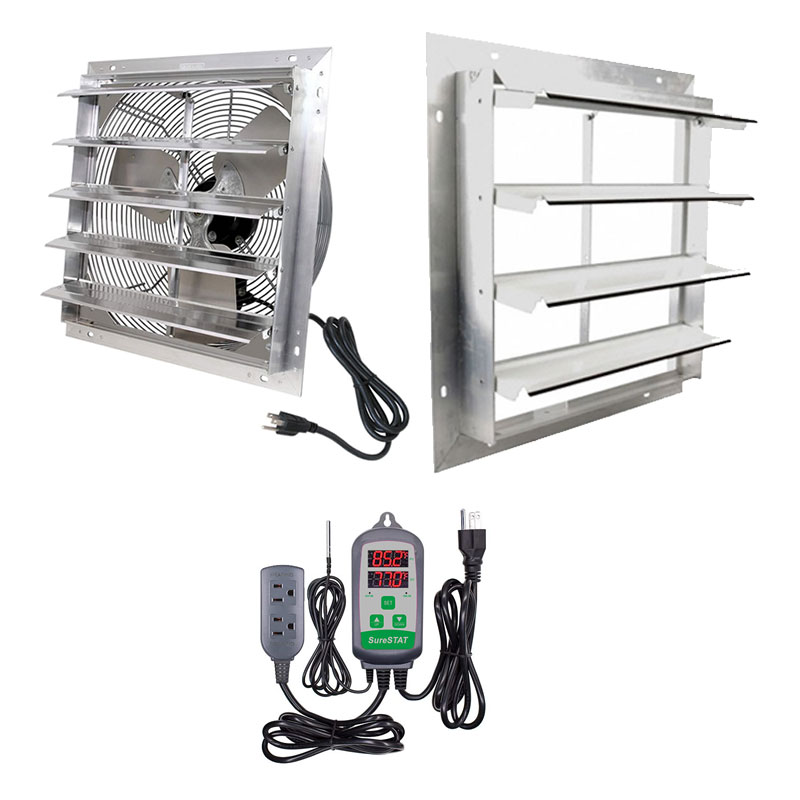

What is included?
Need help sizing a fan system for your greenhouse? Use our Exhaust Fan Size Calculator

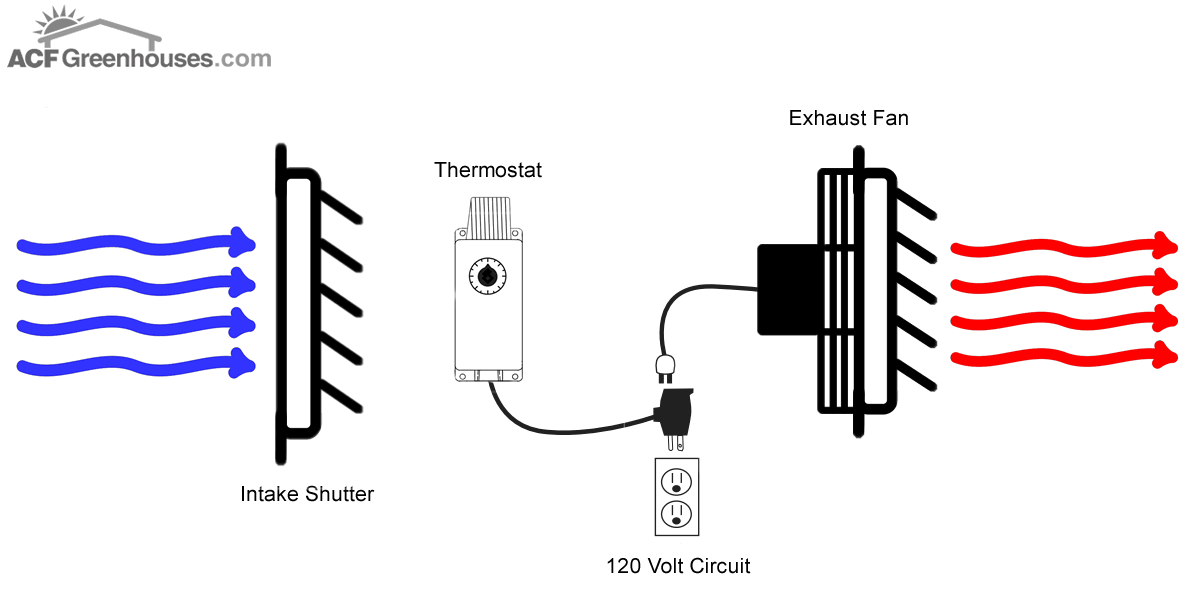

No wiring required! This is the easiest fan system to setup available. Just plug the fan into the thermostat. Then plug the thermostat into an outlet, and you are ready to go. Each fan system is packaged with all of the equipment needed to provide an automated fan system for your greenhouse, shop, or garage. All included items are sized to provide optimal functionality of each fan system. Links are provided below to each piece of equipment in the fan packages. Just click on the text for more information. Dimensions and specifications are also provided in the installation instructions below.

Basic Plug-in Fan System Features:

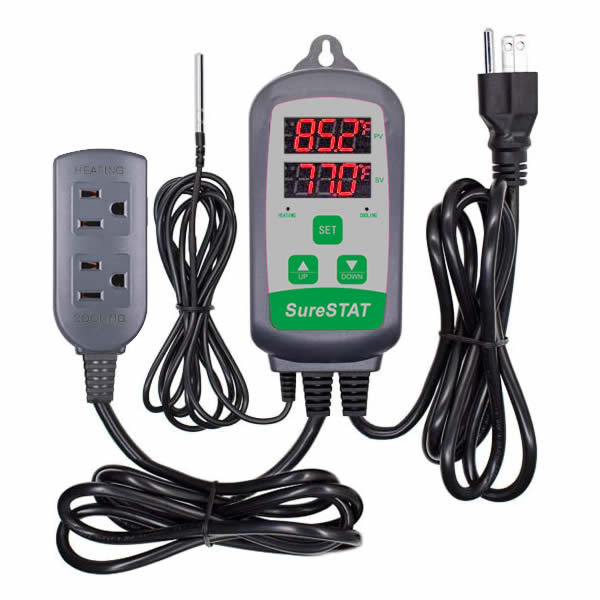

  • Waterproof plug-in thermostat with 30° to 110° F degree temperature range

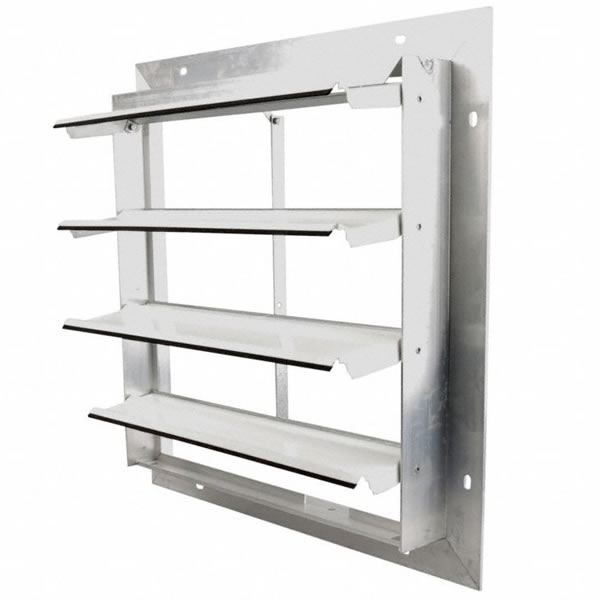

  • Aluminum intake shutters

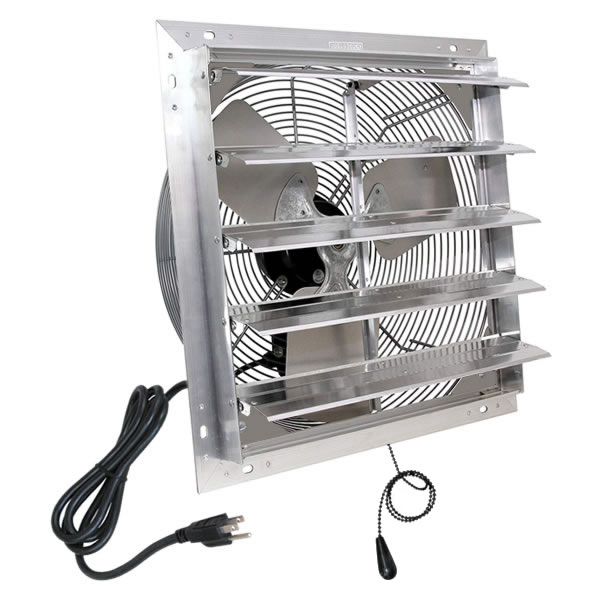

  • Louvered plug-in exhaust fan with multiple speed options


Basic Multi Speed Fan System Specifications

Fan System Model #
CFM Range
Total Amps / Watts
Items Included with System
B1216
Hi / Med / Low
1100 / 850 /550
1.1 amps
132 watts
1 - 12" 3 speed fan
1 - 16" intake shutter
1 - SureStat TS116 plug-in thermostat
B1212
Hi / Med / Low
1100 / 850 /550
1.1 amps
132 watts
1 - 12" 3 speed fan

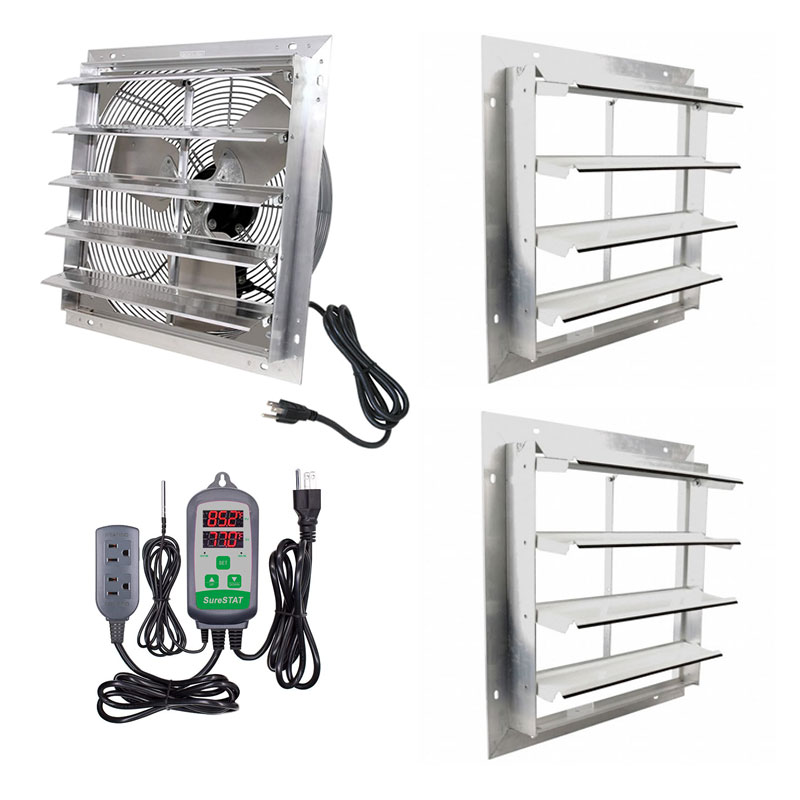

2 - 12" intake shutters
1 - SureStat TS116 plug-in thermostat
B1620
Hi / Med / Low
2950 / 2050 /1200
1.5 amps
180 watts
1 - 16" 3 speed fan
1 - 20" intake shutter
1 - SureStat TS116 plug-in thermostat
B1616
Hi / Med / Low
2950 / 2050 /1200
1.5 amps
180 watts
1 - 16" 3 speed fan
2 - 16" intake shutters
1 - SureStat TS116 plug-in thermostat
B2024
Hi / Med / Low
4220 / 3250 / 2130
1.5 amps
180 watts
1 - 20" 3 speed fan
1 - 24" intake shutter
1 - SureStat TS116 plug-in thermostat
B2020
Hi / Med / Low
4220 / 3250 / 2130
1.5 amps
180 watts
1 - 20" 3 speed fan
2 - 20" intake shutters
1 - SureStat TS116 plug-in thermostat
B2430
Hi / Low
5850 / 3475
1.8 amps
216 watts
1 - 24" 2 speed fan
1 - 30" intake shutter
1 - SureStat TS116 plug-in thermostat
B2424
Hi / Low
5850 / 3475
1.8 amps
216 watts
1 - 24" 2 speed fan
2 - 24" intake shutters
1 - SureStat TS116 plug-in thermostat

Product Manuals, Tips, Specs, & Guides

Basic Plug-in Fan System Instruction Manual - Includes dimensions, layout, and installation tips.
Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!


Item # 8006, 8006100, 8006105, 8006110, 8006115, 8006120, 8006125, 8006130, 8006135, 800567

Product Manuals, Tips, Specs, & Guides

Basic Plug-in Fan System Instruction Manual - Includes dimensions, layout, and installation tips.
Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!

Overall Customer Rating of 14 Reviews:
review-star review-star review-star review-star review-star
Haltom City, TX

Quiet and effective greenhouse fan, easy installation

Rating:
review-star review-star review-star review-star review-star
The greenhouse we designed and constructed is about 11' x 15' with an 8 1/2' roof at the peak. We mounted the fan at one end of the long end, the doorway is at the other end. We live in Texas, so the heat is more of a problem during the summer for any greenhouse here, but they are great in the winter. The installation went well, and with a shade cover over the greenhouse and the fan we are able to keep the greenhouse temps down 10-15 degrees lower during hot weather than the ambient temperature. We also have a mister that provides a bit of humidity which also helps when the temps get up in the high 90's and 100's. The vegetables we are growing in there this Spring are doing great!
review image   review image   review image

NEK Vermont

Works great so far.

Rating:
review-star review-star review-star review-star review-star
Being able to buy the system with the intake and exhaust shutters along with the fan with one part number makes things so much easier and takes out all the guess work. Really good quality and operation is smooth. Used the calculator to find the size needed and my greenhouse stays at the optimum temperature. Strong winds will open the shutters, intakes need to be blocked off on cold windy nights.

Palmer, AK

Basic Plug In Exhaust Fan Systems

Rating:
review-star review-star review-star review-star review-star
The fan and fresh air vent were easy to install. Works just as designed. I doubt my greenhouse will get hot this summer. This setup takes away all the constant monitoring to keep the greenhouse cooled.

hedgesville, west virginia

best for my green house

Rating:
review-star review-star review-star review-star review-star
last year I built a 10x12x8 greenhouse, i put a regular fan in an opening i built at one end in the middle. at the other end i put a storm door with a screen on half the door. when the temperature climbed i had to open the window and turn on the fan, and not forget to turn it it off and close the window. which by the way my fan didnt really cool down my green house much. Now with my new automatic exhaust fan i set the temperature to what i want and let it do its thing and it really cools down the green house. thank you ACF GREEN HOUSES

Montgomery, AL

Glad I bought these

Rating:
review-star review-star review-star review-star review-star
The exhaust fan kit was easy to install on my greenhouse and works great. It made more sense to go this route than to buy four separate vent openers that would only provide natural drafting.
ACF offers great solutions for my hobby and excellent service. Whenever I have questions, they respond promptly to my emails and from what I have seen have the best pricing on products and shipping rates.
