Premium Plug-In Exhaust Fan Systems

Item #: 8007
  • Save 10% versus purchasing items separately
  • All Plug & Play fan system
Price: $429 - $799
    Availability:
    Availability: In Stock - Usually ships in 1 to 2 days.
    FAN SYSTEM:
    Update price
    Quantity:
    Need help sizing a fan system for your greenhouse? Use our Exhaust Fan Size Calculator

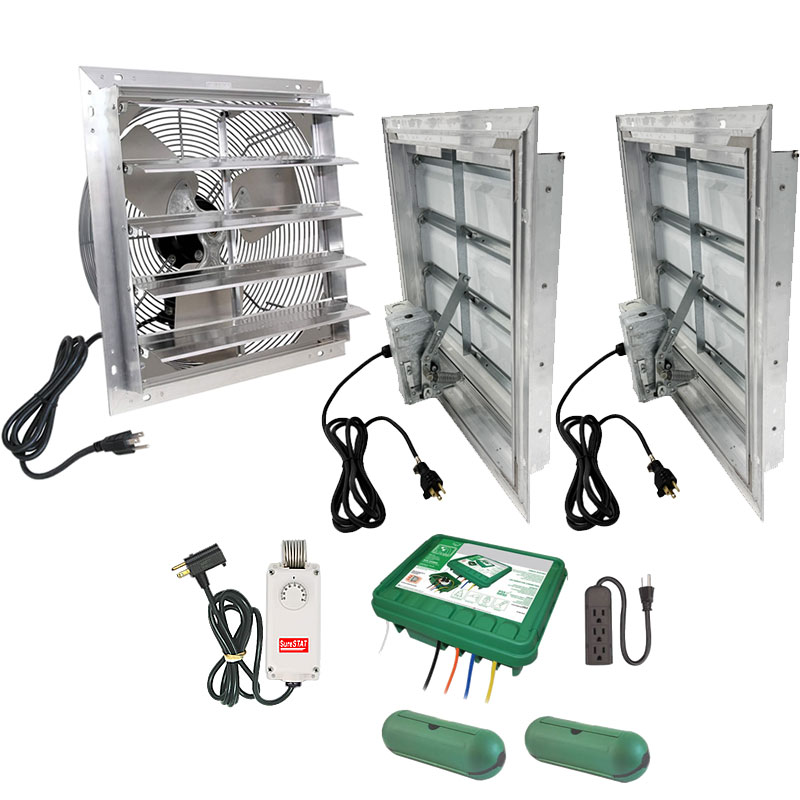

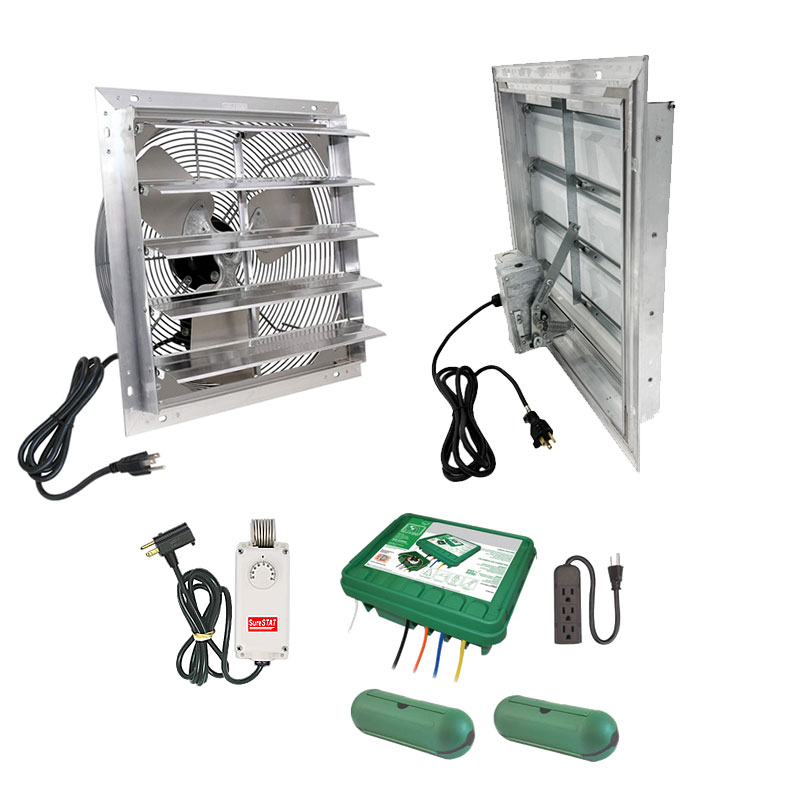

    No wiring required! All equipment just plugs into the thermostat. Then plug the thermostat into an outlet, and you are done. Each fan system is packaged with all of the equipment needed to provide an automated fan and intake(s) for your greenhouse, shop, or garage. All included items are sized to provide optimal functionality of each fan ventilation system. Each fan system also comes with a waterproof connection kit which includes a multi outlet strip housed in a waterproof electrical box to protect all of the plug-ins and one extension cord cover for each intake shutter motor included with the system. An extension cord (not included) will likely be needed to allow intake shutter motor cord to reach the waterproof box. Links are provided below to each piece of equipment in the fan packages. Just click on the text for more information. Dimensions and specifications are also provided in the installation instructions below.

    Premium Plug-in Fan System Features:

    • Waterproof plug-in thermostat with 30° to 110° F degree temperature range

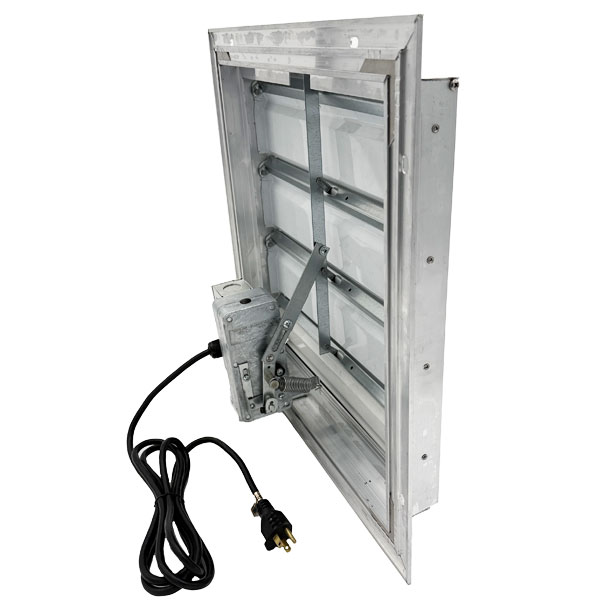

    • Aluminum intake shutters with plug-in motors
    • Louvered plug-in exhaust fan with multiple speed options
    • Waterproof electrical box & extension cord cover(s) to protect all plug-in connections


    Premium Multi Speed Fan System Specifications

    Fan System Model #
    CFM Range
    Total Amps / Watts
    Items Included with System
    P1216
    Hi / Med / Low
    1100 / 850 /550
    1.12 amps
    135 watts
    1 - 12" 3 speed fan
    1 - 16" intake shutter + plug-in motor
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P1212
    Hi / Med / Low
    1100 / 850 /550
    1.14 amps
    137 watts
    1 - 12" 3 speed fan
    2 - 12" intake shutters + plug-in motors
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P1620
    Hi / Med / Low
    2950 / 2050 /1200
    1.52 amps
    183 watts
    1 - 16" 3 speed fan
    1 - 20" intake shutter + plug-in motor
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P1616
    Hi / Med / Low
    2950 / 2050 /1200
    1.54 amps
    185 watts
    1 - 16" 3 speed fan
    2 - 16" intake shutters + plug-in motors
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P2024
    Hi / Med / Low
    4220 / 3250 / 2130
    1.52 amps
    183 watts
    1 - 20" 3 speed fan
    1 - 24" intake shutter + plug-in motor
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P2020
    Hi / Med / Low
    4220 / 3250 / 2130
    1.54 amps
    185 watts
    1 - 20" 3 speed fan
    2 - 20" intake shutters + plug-in motors
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P2430
    Hi / Low
    5850 / 3475
    1.82 amps
    219 watts
    1 - 24" 2 speed fan
    1 - 30" intake shutter + plug-in motor
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit
    P2424
    Hi / Low
    5850 / 3475
    1.84 amps
    221 watts
    1 - 24" 2 speed fan
    2 - 24" intake shutters + plug-in motors
    1 - SureStat TS116 plug-in thermostat
    1 - waterproof connection kit

    Product Manuals, Tips, Specs, & Guides

    Premium Plug-in Fan System Instruction Manual - Includes dimensions, layout, and installation tips.
    Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!


    Item # 8007100, 8007105, 8007110, 8007115, 8007120, 8007125, 8007130, 8007135, 800567

    Product Manuals, Tips, Specs, & Guides

    Premium Plug-in Fan System Instruction Manual - Includes dimensions, layout, and installation tips.
    Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!

    Overall Customer Rating of 14 Reviews:
    review-star review-star review-star review-star review-star

    Premium Plug-In Exhaust Fan System

    Recently I installed an ACF Premium Plug-In Exhaust Fan System P1620 in a greenhouse. Product came promptly. The plug-in system assembled as designed. The weather here is not hot yet & the size of system is fine. I could venture to say I may be adding a 2nd system for hotter weather to move more air.
    One challenge I'm having is with the fan shutter as it is not intentionally controlled. It's held open when the fan runs, otherwise it flaps and flaps from the wind.
    I'm told in the the colder season these shutters are going to have to stay shut. Initially, I may try & create some type of return spring that will pull the shutter shut but the fan can still blow open.
    A more positive control option here would be to add a damper motor for shutter control as is installed on the intake shutters. It could be plugged into the power strip also.

    Premium Fan System

    Works well at bringing the temp down in my 13x13 grow more greenhouse. It's not a drastic drop, but does bring it down by at least 10° and keeps air circulating.

    Ventilation system

    The equipment arrived sooner than promised. Easy installation. Works flawlessly. We love it.

    Premium Plug In Exhaust Fan System

    Products arrived timely to Alaska. Install was straight forward and directions where easy to understand. So far, it has functioned as it should and I'm really pleased with it. It was installed in a 12x24, double-wall polycarbonate greenhouse.

    Perfect match for my greenhouse

    Ordered the P1216 Fan System for my 10x12 greenhouse, and it has been the perfect match. The 3-speed fan offers options for the correct amount of air movement depending on the weather conditions, and the electric opener for the intake vent ensures the vent stays closed until it is needed for ventilation. Also ordered the 12" and 16" hoods for the fan and intake vent to keep the winter storms out.
    review image   review image

    Super easy

    Great product. Easy to install. Awesome to have a sizing calculator. I won't be waking up at 6 am this summer to open the vent anymore!

    Exhaust fan for my new greenhouse

    Everything came packed so well! Directions included. We have froze up so I won’t be able to install until the weather changes. At 74 it is hard to get my fingers moving. Stay tuned I can’t imagine it not working perfectly. And the nice thing if I need tech help that comes along with the purchase. AFC. IS THE BEST I BOUGHT ONE BACK IN 2009 and far as I know it is still working I had moved so starting a new with my greenhouse. I would recommend you purchase from them they have a great product

    works great

    one small problem, that was fixed by one phone call. works as offered, happy

    Perfect

    Easy install.

    Greenhouse Ventilation System - Premium Plug In

    Well color me thoroughly impressed! We're at 7,000' in northern Colorado, so spring conditions can be really tricky and variable. I was running home every morning to manually vent my greenhouse. Now I just check my Ambient weather site and watch it automatically stay at 80 degrees. This kit was very easy to install - I'm moderately handy and can do my own wiring for power. The components are of good quality, nothing was broken and the kit came within a couple days of my order. The design is clever - everything plugs into a power strip switched by a thermostat. I don't use overhead watering or humidifiers, so didn't bother with the waterproof box for all the connections - but I'll find a use for it outside.
